Nanjing Hongbo Metal Products Co., Ltd. jin_song@njhongbo.com 86--15105151079
Product Details
Place of Origin: Jiangsu, China
Model Number: HXB
Payment & Shipping Terms
Minimum Order Quantity: 1000 kilograms
Price: $1.20/kilograms >=1000 kilograms
Type: |
Cantilevered |
Material: |
Steel |
Feature: |
Corrosion Protection |
Use: |
Warehouse Rack |
Depth: |
300-2000mm |
Weight Capacity: |
300-1500kgs/arm |
Width: |
500-2000 |
Height: |
1500-9000mm |
Color: |
Blue/Orange/Grey/Yello Etc |
Usage: |
Industrial |
Access Mode: |
Flexiable |
Type: |
Cantilevered |
Material: |
Steel |
Feature: |
Corrosion Protection |
Use: |
Warehouse Rack |
Depth: |
300-2000mm |
Weight Capacity: |
300-1500kgs/arm |
Width: |
500-2000 |
Height: |
1500-9000mm |
Color: |
Blue/Orange/Grey/Yello Etc |
Usage: |
Industrial |
Access Mode: |
Flexiable |

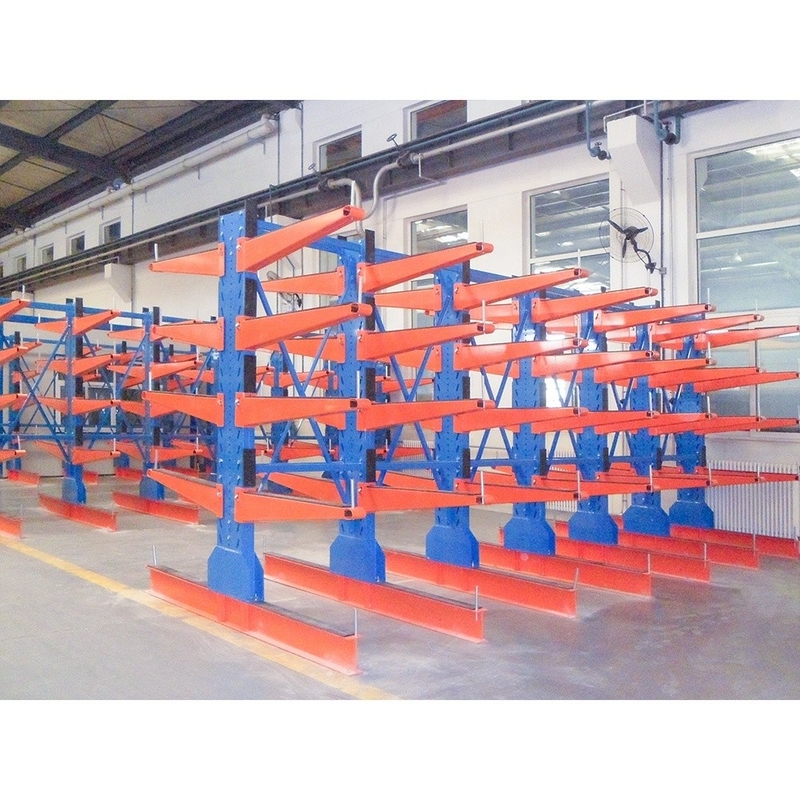

Cantilever racking has two types, single sided cantilever and double sided cantilever. The load per arm ranges from 300kgs to 1000kgs or even more.
Following are its characteristics.
1. Compared with pallet rack, this storage rack is open faced, applicable to store items with long length or irregular shape, such as pipe, bar, profile, sofa, etc.
2. Strong loading capacity. The load per arm could be as high as 1000kgs.
3. Improve warehouse utilization ratio and increase working efficiency.
4. It could work with wooden or steel shelf to store small items.
5. Dismantled structure. Easy to install and dismantle.
6. Arm upturn 2 to 4 degree, make sure when the rack are fully loaded, the far end position is higher than base.
7. Adjusting arm. Upright has holes, arms can be adjusted to suit different goods height.
This storage rack is used in wood and furniture industry, machinery manufacturing industry, logistics center, electrical energy industry, etc.
Product Information:
| Rack Type | cantilever rack | ||
| Model | HXB | L | ≤100kgs/arm |
| M | 100~500kgs/arm | ||
| H | 500~1000kgs/arm | ||
| XH | ≥1000kgs/arm | ||
| Access Style | flexiable | ||
| Structure | knock down or assembled | ||
| Forklift Asile | around 3200mm,depends on customer's forklift parameter | ||
| Load Capacity & Dimension | Load capacity | 100~1500kgs/arm | |
| length | 500mm~2000mm | ||
| depth/width(arm length) | 500mm~2000mm | ||
| height | ≤9000mm | ||
| level | ≥2 | ||
| Components | core components | upright, arm, base, horizontal bracing | |
| optional components | spacer,wire mesh decking,board,top tie,goods support, protector, etc. | ||
| Core Components Specification (mm) |
upright section | face | 200, 300, 350,410 |
| adjust step | 100 | ||
| arm section | base height | 60,80,100, 120, 140,160,180,200, 220 | |
| width | 55,60,90,100,150 | ||
| thickness | 1.5,2.0,205, 3.0 | ||
| Material | Q235(ss400),Q355(S355B,S355JR) | ||
| Finish | 1. Epoxy resin electrostatic spraying(powder coating), 2.hot-dip galvanized |
||
| Coating thickness | no less than 60um for average thickness for powder coating | ||
| Color | ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey) Customized colors are available when order above 1*40gp containers |
||
To suit different clients needs,HBrack use different storage method.Following are rules followed.
For container order: stretch film+carton board+packing belt+plywood stick+plywood pallet leg
For less than container order:plywood box or other that can keep the product safe during transportation
Other: based on clients' needs, such as vacum packing etc.
