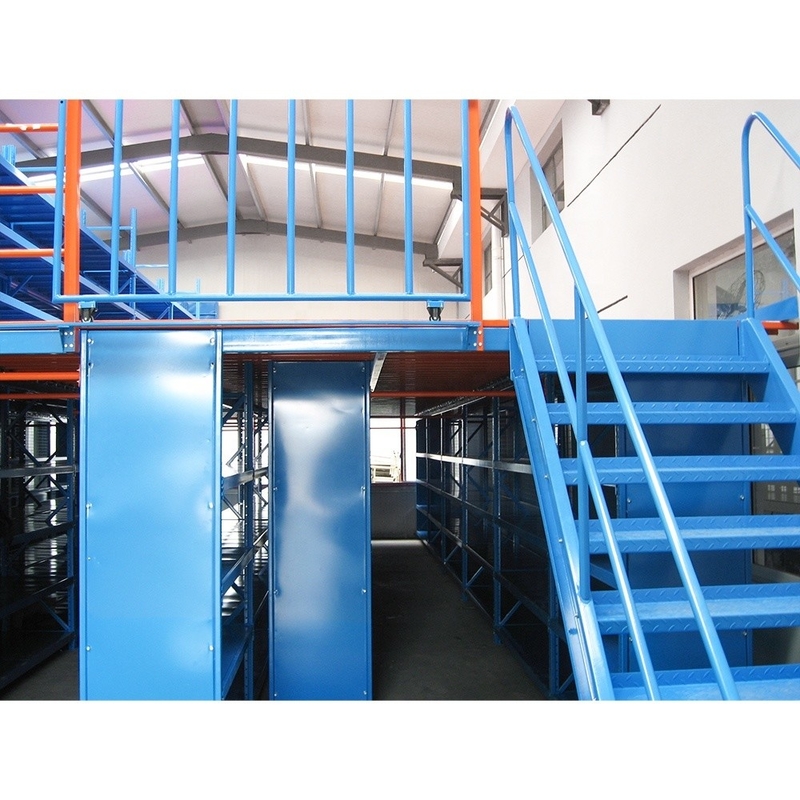

Customized and Maximum Capacity Load Multi-Level Shelving with Powder Coated Finish

Name: Customized and Maximum Capacity Load Multi-Level Shelving with Powder Coated Finish
Brand: Customized and Maximum Capacity Load Multi-Level Shelving with Powder Coated Finish
SKU: HGL
Price: 1.40 USD
Availability: InStock
Rating: 4.7 (195 reviews)

Product Details

Place of Origin: Jiangsu China

Model Number: HGL

Payment & Shipping Terms

Minimum Order Quantity: 1000 kilograms

Price: $1.40/kilograms 1000-4999 kilograms

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Type:	Multi-Level	Material:	Steel
Feature:	Corrosion Protection	Use:	Warehouse Rack
Depth:	400-2000mm	Weight Capacity:	100-500kgs/layer
Width:	1200-2700mm	Height:	3500-9000mm
Color:	Blue/Orange/Yellow/Grey Etc	Finish:	Powder Coated
Structure:	Bolted

Type:	Multi-Level
Material:	Steel
Feature:	Corrosion Protection
Use:	Warehouse Rack
Depth:	400-2000mm
Weight Capacity:	100-500kgs/layer
Width:	1200-2700mm
Height:	3500-9000mm
Color:	Blue/Orange/Yellow/Grey Etc
Finish:	Powder Coated
Structure:	Bolted

Product Description

Specification

Rack Type					rack supported mezzanine
Model	HGL-A			single or multi tier (layer) rack supported mezzanine
Model		HGL-B			single or multi tier (layer) rack supported mezzanine topped with floor
Access Style					flexiable
Structure					knock down or assembled,welded structure available
Working Asile					around 1000mm,depends on customer's storage needs
Load Capacity & Dimension	Load capacity	light duty	≤150kgs/level
				medium duty	150~500kgs/level
				heavy duty	≥500kgs/level
				floor load	300kgs~800kgs/sqm
		length			900mm~3000mm
		depth/width			250mm~2000mm
		height			3500mm~8000mm
		tier			≥1
Components	core components			frame(upright,also called column or post,bracing,base plate,fasteners),beam,shelf,stairase,handrail
Components		optional components			wire mesh decking,back/side board,back/side mesh,top tie, divider
Core Components Specification	upright section	face	55mm,80mm,90mm,100mm,120mm
				height	47mm,55mm,57mm,60mm,67mm,95mm,135mm
				thickness	1.5mm,1.8mm,2.0mm
				adjust step	50mm,75mm
		beam section	height	50mm,60mm,80mm,110mm
				width	30mm,40mm,50mm
				thickness	1.2mm,1.5mm,1.8mm,2.0mm
Material					Q215,Q235(ss400),Q355(S355B,S355JR)
Finish					Epoxy resin electrostatic spraying(powder coating)
Coating thickness					no less than 40um for average thickness
Color					ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey) Customized colors are available when order above 2*40gp containers

Product Description

1. Rack supported mezzanine, or multi tier rack, is usually for storage of goods picked up manually.

2. Compared with steel shelving, rack supported mezzanine is higher on height, and could make more use of warehouse space.

3. Size and load are customized based on clients’ storage needs.

4. Load per shelf level is usually within 500kgs. Mostly, floor load per square meter is from 300kgs to 500kgs.

5. There are doors for loading and unloading goods.

6. When the height is out of reach, it could be used with ladder.

7. The general ways of transportation from one floor to another are: staircase, lift, hoist machine, conveyor belt, slideway, and forklift truck, etc.

8. It’s used in machinery manufacturing industry, logistics center, distribution center, food industry, chemical industry,

electronic industry, furniture industry, warehouse supermarket, etc.

Project show

Packing & Delivery

To suit different clients needs,HBrack use different storage method.Following are rules followed.

For container order: stretch film+carton board+packing belt+plywood stick+plywood pallet leg
For less than container order:plywood box or other that can keep the product safe during transportation
Other: based on clients' needs, such as vacum packing etc.

FAQ

Question 1: Are you factory or trading company?
Answer 1: We are factory and also do trading products related to warehouse rack.

Question 2:Do you provide sample? Is it free or extra?
Answer 2: We provide sample parts free charged and you just need to pay the freight. When need whole sample rack for testing the possibility, please contact us for sample cost.

Question 3: I’d like to visit you. Which city should I go?
Answer 3: We are in Nanjing. When needed, we can help you book hotel, traffic ticket. And we will pick you up to the destination place. We have sales person and driver who will be with you during the visit. You don’t have to worry about the traffic matter.

Question 4: Why choose you?
Answer 4:
1. HBrack have engineers who are professional in design warehouse rack more than 10 years and could handle from simple structure
to complex one.
2. Your money is safe with HBrack. We accept trading through 3rd party. The sales person have rich experience in warehouse rack,
all the personal information is trackable.
3. HBrack offer different design to help client control budget.
