Efficiently Designed Pallet Flow Roller Gravity Rack for 300-1500kgs Weight Capacity

Name: Efficiently Designed Pallet Flow Roller Gravity Rack for 300-1500kgs Weight Capacity
Brand: Efficiently Designed Pallet Flow Roller Gravity Rack for 300-1500kgs Weight Capacity
SKU: HZL
Price: 1.60 USD
Availability: InStock
Rating: 4.8 (186 reviews)

Product Details

Place of Origin: Jiangsu China

Model Number: HZL

Payment & Shipping Terms

Minimum Order Quantity: 1000 kilograms

Price: $1.60/kilograms >=1000 kilograms

Packaging Details: Plywood+Streach Film+Carton Board+Packing Belt

Supply Ability: 2000000 Kilogram/Kilograms per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Type:	Gravity Flow Pallet Rack	Material:	Steel
Feature:	Corrosion Protection	Use:	Warehouse Rack
Depth:	2000-30000mm	Weight Capacity:	300-1500kgs/pallet
Width:	1000-3000mm	Height:	2000-10000mm
Color:	Blue/Orange/Yellow/Grey Etc	Access:	First-in, First-out(FIFO)
Finish:	Powed Coated	Port:	Nanjing,Shanghai

Type:	Gravity Flow Pallet Rack
Material:	Steel
Feature:	Corrosion Protection
Use:	Warehouse Rack
Depth:	2000-30000mm
Weight Capacity:	300-1500kgs/pallet
Width:	1000-3000mm
Height:	2000-10000mm
Color:	Blue/Orange/Yellow/Grey Etc
Access:	First-in, First-out(FIFO)
Finish:	Powed Coated
Port:	Nanjing,Shanghai

Product Description

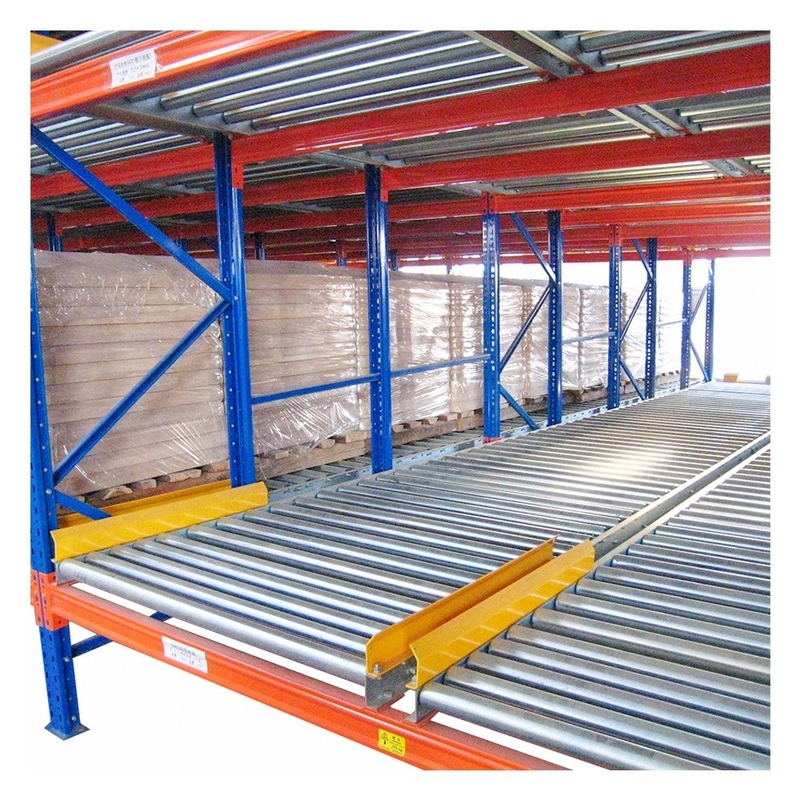

Gravity flow pallet rack (also called live pallet rack) is one of the high density storage racks. The rack depth could be up to 30 pallets deep. The pick-up mode is “First in first out (FIF0)”. One channel is better for one goods type or goods that taken out in order.

The rack working principle as following:

1. The higher end is equipped with guide rail.
2. Pallet is placed on the higher end and flow down under the function of its gravity.
3. Guide rail make the pallet flow in the right direction.
4. Damping systems are equipped along the roller line to make the pallet flow down with speed around 200mm per second.
5. Separator is placed on the lower end with its position between the first pallet and the second one.
6. When first pallet reaches the lowest end, separator start work and prevents the second pallet from flowing down. After the first pallet is picked up, the separator release, and the second pallet takes the pick-up position.

Product packaging

FAQ

Question 1: Are you factory or trading company?
Answer 1: We are factory and also do trading products related to warehouse rack.

Question 2:Do you provide sample? Is it free or extra?
Answer 2: We provide sample parts free charged and you just need to pay the freight. When need whole sample rack for testing the
possibility, please contact us for sample cost.

Question 3: I’d like to visit you. Which city should I go?
Answer 3: We are in Nanjing. When needed, we can help you book hotel, traffic ticket. And we will pick you up to the destination
place. We have sales person and driver who will be with you during the visit. You don’t have to worry about the traffic matter.

Question 4: Why choose you?
Answer 4:
1. HBrack have engineers who are professional in design warehouse rack more than 10 years and could handle from simple structure
to complex one.
2. Your money is safe with HBrack. We accept trading through 3rd party. The sales person have rich experience in warehouse rack,
all the personal information is trackable.
3. HBrack offer different design to help client control budget.
