Product Details
Place of Origin: Nanjing, China
Model Number: HTP
Payment & Shipping Terms
Minimum Order Quantity: 10 kilograms
Price: $0.90 - $1.50/kilograms
Packaging Details: Stretch film+carton strip+plywood stick+plywood pallet leg+packing belt
Supply Ability: 2000 Kilogram/Kilograms per Month
Type: |
Selective Pallet Rack |
Material: |
Steel |
Feature: |
Corrosion Protection |
Use: |
Warehouse Rack |
Depth: |
800-1500mm |
Weight Capacity: |
500-4000kgs/pair Beam |
Width: |
1000-3900mm |
Height: |
1500-12000mm |
Usage: |
Industry |
Color: |
Blue, Orange, Yellow, Green Etc. |
Port: |
Nanjing, Shanghai |
Type: |
Selective Pallet Rack |
Material: |
Steel |
Feature: |
Corrosion Protection |
Use: |
Warehouse Rack |
Depth: |
800-1500mm |
Weight Capacity: |
500-4000kgs/pair Beam |
Width: |
1000-3900mm |
Height: |
1500-12000mm |
Usage: |
Industry |
Color: |
Blue, Orange, Yellow, Green Etc. |
Port: |
Nanjing, Shanghai |

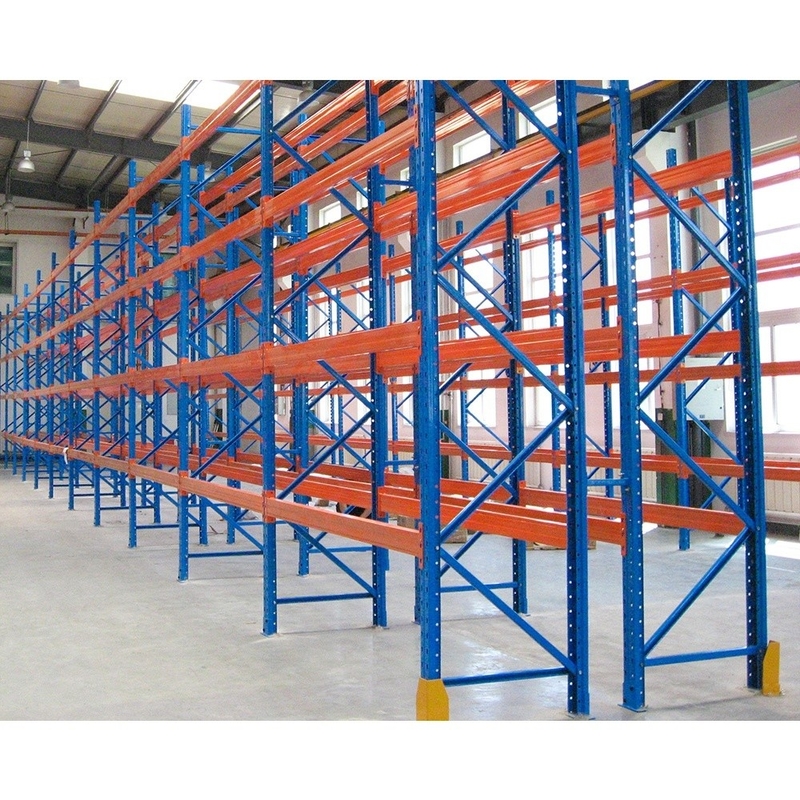

Selective pallet racking is the most widely used and cost effective storage rack type. It is used for store palletized product. Averagely, the load per level ranges from 500 to 4000kgs. And the height could be as high as 12 meters.
| Beam size(mm) | beam length(mm) | ||||||||
| 1400 | 1500 | 1900 | 2300 | 2500 | 2700 | 2900 | 3300 | 3600 | |
| Load(kg) | |||||||||
| 80*50*1.5 | 3854 | 3358 | 2092 | 1428 | 1209 | 1036 | 898 | 694 | 583 |
| 90*50*1.5 | 2797 | 1909 | 1616 | 1386 | 1201 | 927 | 779 | ||
| 100*50*1.5 | 3511 | 2397 | 2028 | 1739 | 1507 | 1164 | 978 | ||
| 110*50*1.5 | 2994 | 2534 | 2173 | 1883 | 1454 | 1222 | |||
| 120*50*1.5 | 3671 | 3107 | 2664 | 2309 | 1783 | 1499 | |||
| 130*50*1.5 | 4287 | 3629 | 3111 | 2697 | 2083 | 1750 | |||
| 140*50*1.5 | 3831 | 3320 | 2564 | 2155 | |||||
| 160*50*1.5 | 3475 | 2920 | |||||||
