Product Details
Place of Origin: Nanjing, China
Model Number: HTP
Payment & Shipping Terms
Minimum Order Quantity: 10 kilograms
Price: $0.90 - $1.50/kilograms
Packaging Details: Stretch film+carton strip+plywood stick+plywood pallet leg+packing belt
Supply Ability: 2000 Kilogram/Kilograms per Month
Type: |

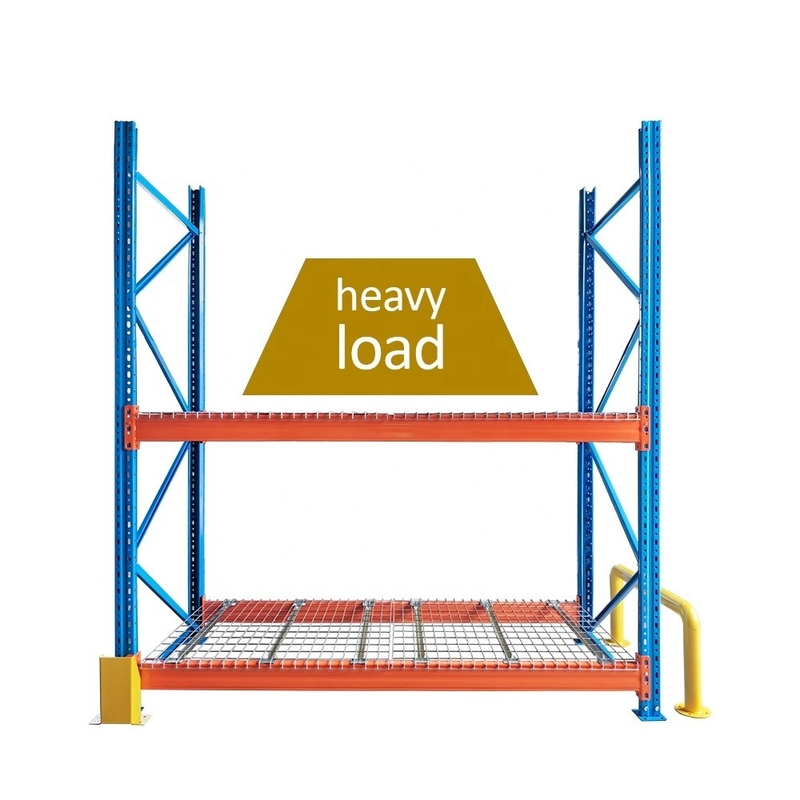

Selective Pallet Rack |
Material: |
Steel |
Feature: |
Corrosion Protection |
Use: |
Warehouse Rack |
Depth: |
800-1500mm |
Weight Capacity: |
500-4000kgs/pair Beam |
Width: |
1000-3900mm |
Height: |
1500-12000mm |
Usage: |
Industry |
Color: |
Blue, Orange, Yellow, Green Etc. |
Port: |
Nanjing, Shanghai |
Type: |
Selective Pallet Rack |
Material: |
Steel |
Feature: |
Corrosion Protection |
Use: |
Warehouse Rack |
Depth: |
800-1500mm |
Weight Capacity: |
500-4000kgs/pair Beam |
Width: |
1000-3900mm |
Height: |
1500-12000mm |
Usage: |
Industry |
Color: |
Blue, Orange, Yellow, Green Etc. |
Port: |
Nanjing, Shanghai |
|
Rack Type
|
|
|
adjustable pallet rack
|
||
|
Rack Cost
|
|
|
√Low, Medium Low,Medium,Medium high,High,Higher
|
||
|
Pick-up Mode
|
|
|
flexiable
|
||
|
Structure
|
|
|
knock down or assembled,welded frame available
|
||
|
Forklift Asile
|
|
|
around 3200mm,depends on customer's forklift parameter
|
||
|
Load Capacity & Dimension
|
load capacity
|
|
500-4000kgs/beam pair
|
||
|
|
size
|
|
customized based on clients' pallet
|
||
|
|
core components
|
|
frame(upright,also called column or post,bracing,base plate,fasteners),beam
|
||
|
|
Other
|
|
upright protector,frame protector,spacer,wire mesh decking,board,back stopper,top tie,side mesh,pallet support,etc.
|
||
|
|
|
size(mm)
|
80*60, 90*60, 90*70, 100*70, 120*95, 120*135
|
||
|
|
|
step(mm)
|
75
|
||
|
|
beam
|
size(mm)
|
80*50,100*50,110*50,120*50,130*50,140*50,160*50,180*50
|
||
|
Material
|
|
|
Q235(ss400),Q355(S355B,S355JR)
|
||
|
Finish
|
|
|
Epoxy resin electrostatic spraying(powder coating)
|
||
|
Coating thickness
|
|
|
no less than 60um for average thickness
|
||
|
|
|
|
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers |
||
