Product Details
Place of Origin: Jiangsu China
Payment & Shipping Terms
Minimum Order Quantity: 10000 kilograms
Price: $1.00/kilograms >=10000 kilograms
Type: |
Drive-In Pallet Rack |
Material: |
Steel |
Feature: |
Corrosion Protection |
Use: |
Warehouse Rack |
Depth: |
1700-8000mm |
Weight Capacity: |
300-1500kgs/pallet |
Width: |
1150-1650mm |
Height: |
3000-9000mm |
Color: |
Blue/Orange/Yellow/Grey Etc |
Access Mode: |
First-in, Last-out(FILO) |
Finish: |
Powder Coated |
Type: |
Drive-In Pallet Rack |
Material: |
Steel |
Feature: |
Corrosion Protection |
Use: |
Warehouse Rack |
Depth: |
1700-8000mm |
Weight Capacity: |
300-1500kgs/pallet |
Width: |
1150-1650mm |
Height: |
3000-9000mm |
Color: |
Blue/Orange/Yellow/Grey Etc |
Access Mode: |
First-in, Last-out(FILO) |
Finish: |
Powder Coated |

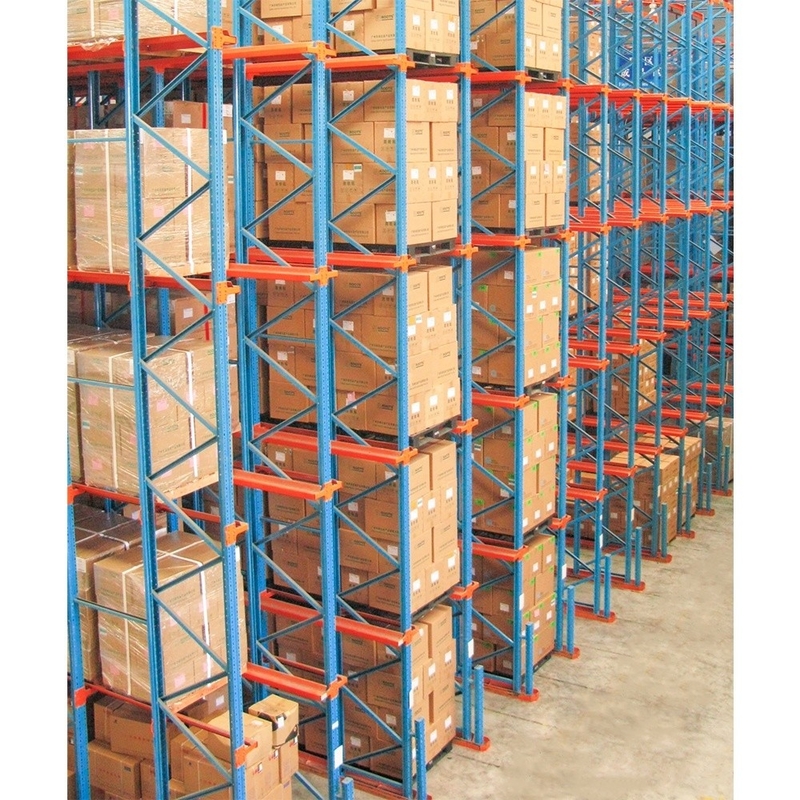

Drive-In Pallet Rack for High Density Warehouse Storage 3000-9000mm Adjustable Height
|
Rack Type
|
|
|
drive in pallet racking
|
||
|
Rack Cost
|
|
|
Low, Medium Low,√Medium,Medium high,High,Higher
|
||
|
Pick-up Mode
|
|
|
first in,last out(FILO)
|
||
|
Structure
|
|
|
knock down or bolted,welded frame available
|
||
|
Forklift Asile
|
|
|
around 3200mm,depends on customer's forklift parameter
|
||
|
Load Capacity & Dimension
|
Load capacity
|
|
≤1500kgs/pallet
|
||
|
|
size
|
|
customized based on clients' pallet
|
||
|
Components
|
core components
|
|
frame(upright,also called column or post,bracing,base plate,fasteners),cantilever arm, support shelf,back bracing, top bracing
|
||
|
|
other
|
|
upright protector,frame protector,guide rail,protect mesh etc.
|
||
|
Core Components Specification
|
upright section
|
face
|
80*60mm,90*60/67mm,100*67mm,120*95/135mm
|
||
|
|
|
step
|
75mm
|
||
|
|
cantilever arm
|
thickness
|
2.0mm, 2.5mm,2.75mm
|
||
|
Material
|
|
|
Q235(ss400),Q355(S355B,S355JR)
|
||
|
Finish
|
|
|
Epoxy resin electrostatic spraying(powder coating),electric galvanized
|
||
|
Coating thickness
|
|
|
no less than 60um for average thickness for powder coating
|
||
|
Color
|
|
|
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers |
||
